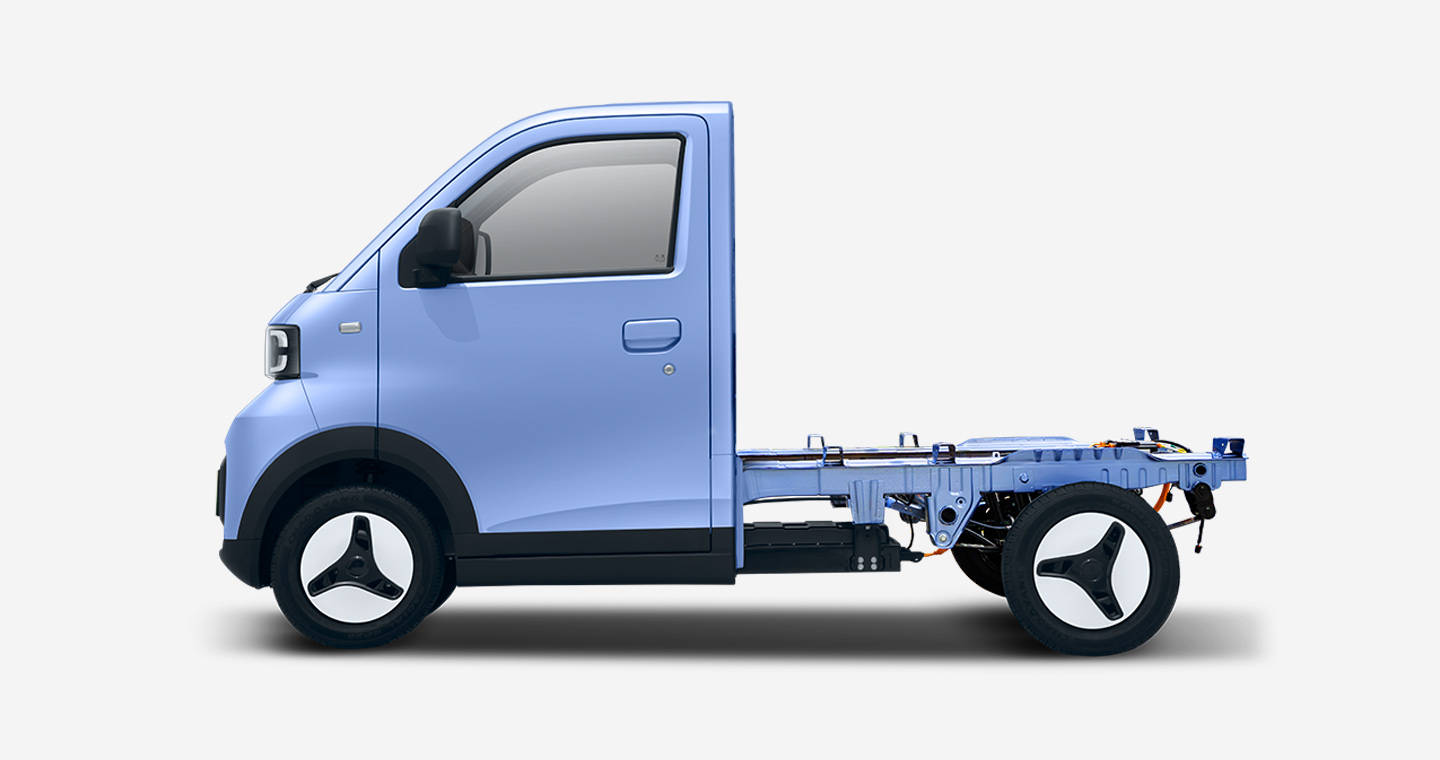

PAIDI CLASS II CHASSIS

Using automotive-grade lithium iron phosphate battery cells, the box body is made of high-strength steel plates,high overall strength, high temperature resistance, and good thermal stability；
The stamped fully-loaded cage-type body features high-strength steel plates in key areas,in complies with EU safety regulations and standards；
Professional modification technical solution support；
The frame comes with a lifetime warranty, while the entire vehicle is covered for 3 years or 80,000 kilometers,The battery comes with a 5-year warranty covering a distance of 150,000 kilometers, adhering to automotive-grade standards and providing automotive-grade protection；
Reinforced chassis design, strong carrying capacity and large modification space；
Intelligent automated large-scale production lines with significant cost advantages。

PAIDI CLASS II CHASSIS

3170 mm

Length

1080 mm

Width

1700 mm

Height

2200 mm

Wheelbase

5.99 kWh

Battery Capacity

UNIQUELY START FUTURE

Automotive grade quality

Lifetime warranty for the frame, 3-year warranty for 80000 kilometers, 5-year warranty for 150000 kilometers for the battery

PAIDI Class II chassis parameter table

Note: 1. (● Standard, ○ Optional, - Not available); 2. The endurance mileage is under the condition of a load of 200kg, a constant speed of 30km, and an external temperature of 20℃. Our company reserves the right to modify the provided parameters, and no further notice will be given in case of any changes.

MAIN PARAMETER	PIONEER VERSION	KNIGHT VERSION	FLAGSHIP VERSION
LWH (mm)	3170×1080×1700	3170×1080×1700	3170×1080×1700
Wheelbase (mm)	2200	2200	2200
Internal size of container (mm)	/	/	/
Tyre size	145/70 R12	145/70 R12	145/70 R12
Mn ground clearance(full load) (mm)	≥140	≥140	≥140
Min turning radius (m)	≤3.9	≤3.9	≤3.9
Max speed (km/h）	≥45	≥45	≥45
Curb weight without AC (kg)	430	440/带空调460	440/带空调460
Rated load capacity（kg)	≥400	≥400	≥400
Full load capacity（kg)	965	1000	1000
Range (km)	≥100	≥100	≥100
MOTOR/BATTERY PARAMETERS
Motor type	PMSM	PMSM	PMSM
Battery	Lithium iron phosphate	Lithium iron phosphate	Lithium iron phosphate
Battery capacity (kWh)	5.99	5.99	5.99
Battery heat management	Air cooling	Air cooling	Air cooling
INTERIOR
Multi-function instrument (7-inch LCD screen)	-	○	●
Reversing camera image	-	-	-
Reverse radar	●	●	●
CONVENIENT AND COMFORTABLE
Material of seats	weave●	weave●	weave●
2 Flat seats	●	●	●
CONTROL DEVICE
EPS electric power steering	●	●	●
Vacuum-assisted braking	●	●	●
Slope standing function	●	●	●
Single warm air	●	●	○
Manual AC (heat, cool)	-	○	●
MULTIMEDIA
Bluetooth function (mobile phone connection)	●	●	●
USB interface (1*18W)	●	●	●
Loudspeaker (1 No.)	●	●	●
Monitoring platform T-BOX (remote positioning, fencing, anti-theft, interconnection)	●	●	●
