| MAIN PARAMETER | PIONEER VERSION | KNIGHT VERSION | FLAGSHIP VERSION | SWAP VERSION |
| L*W*H (mm) | 3330×1080×1745(1.8m³) 3495×1200×1925(2.6m³) | 3330×1080×1745(1.8m³) 3495×1200×1925(2.6m³) | 3330×1080×1745(1.8m³) 3495×1200×1925(2.6m³) | 3330×1080×1745(1.8m³) 3495×1200×1925(2.6m³) |
| Wheelbase (mm) | 2200 | 2200 | 2200 | 2200 |
| Internal size of container (mm) | 1655×1030×1050(1.8m³) 1820×1150×1215(2.6m³) | 1655×1030×1050(1.8m³) 1820×1150×1215(2.6m³) | 1655×1030×1050(1.8m³) 1820×1150×1215(2.6m³) | 1655×1030×1050(1.8m³) 1820×1150×1215(2.6m³) |

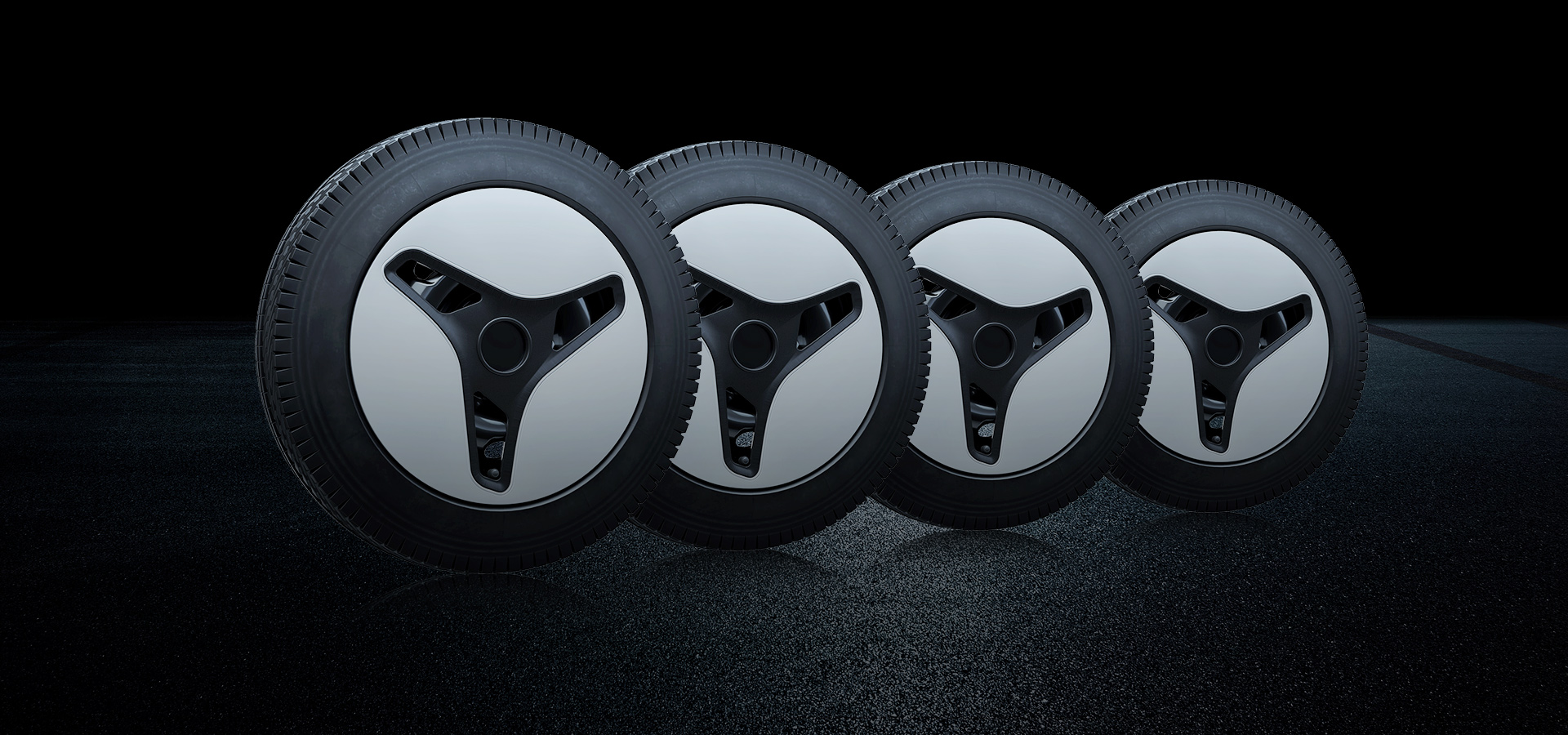

| Tyre size | 145/70 R12 | 145/70 R12 | 145/70 R12 | 145/70 R12 |
| Mn ground clearance(full load) (mm) | ≥140 | ≥140 | ≥140 | ≥140 |
| Min turning radius (m) | ≤3.9 | ≤3.9 | ≤3.9 | ≤3.9 |
| Max speed (km/h） | ≥45 | ≥45 | ≥45 | ≥45 |
| Curb weight without AC (kg) | 555(1.8m³) 570(2.6m³) | 555/With AC 570(1.8m³) 570/With AC 595(2.6m³) | 570(1.8m³) 595(2.6m³ | 530(1.8m³) 545(2.6m³) |
| Rated load capacity（kg) | ≥300 | ≥300 | ≥300 | ≥200 |
| Full load capacity（kg) | 1030(1.8m³) 1045(2.6m³) | 1030/With AC 1045(1.8m³) 1045/With AC 1070(2.6m³) | 1045(1.8m³) 1070(2.6m³) | 1005(1.8m³) 1020(2.6m³) |
| Range (km) | ≥100 | ≥100 | ≥100 | ≥40 |
| MOTOR/BATTERY PARAMETERS |

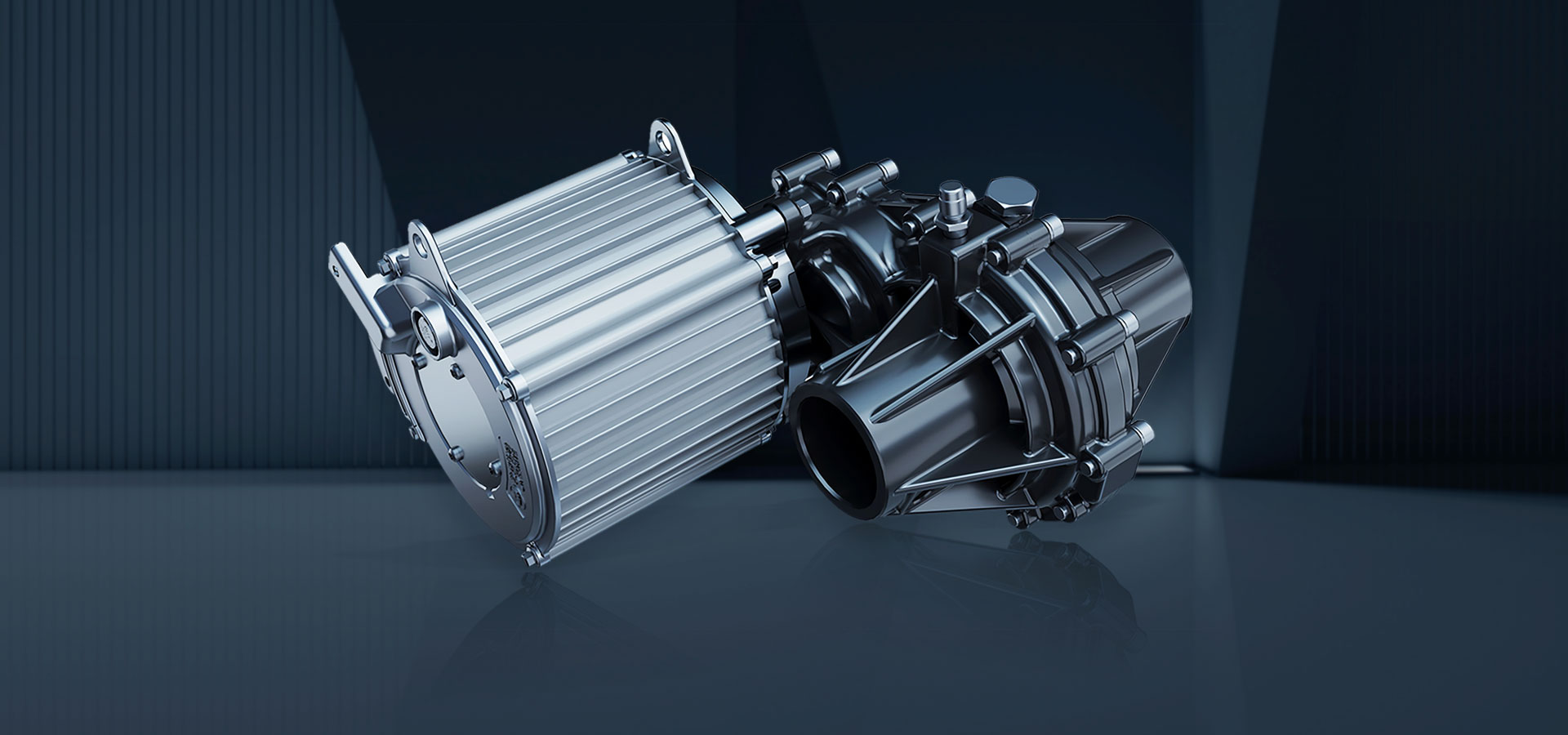

| Motor type | PMSM | PMSM | PMSM | PMSM |
| Battery | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate |
| Battery capacity (kWh) | 5.99 | 5.99 | 5.99 | 2.88 |
| Battery heat management | Air cooling | Air cooling | Air cooling | Air cooling |

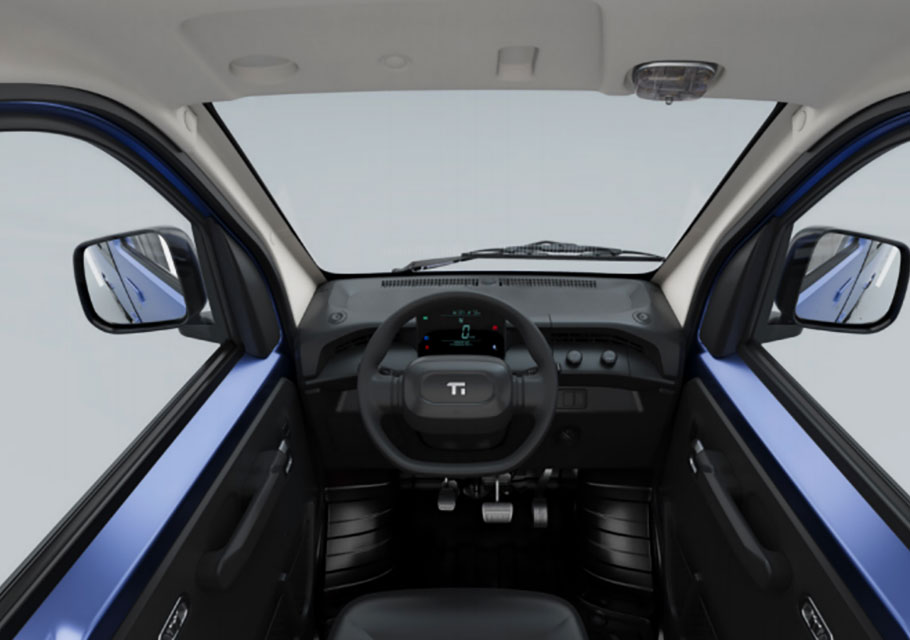

| INTERIOR |

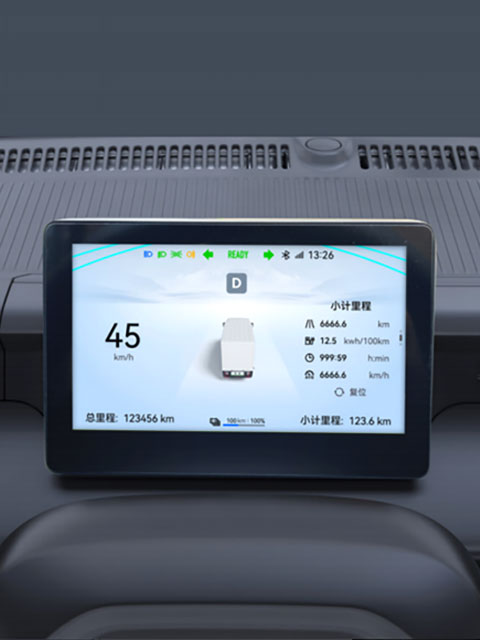

| Multi-function instrument (7-inch LCD screen) | - | ● | ● | ● |
| Reversing camera image | - | ● | ● | ● |
| Reverse radar | ● | ● | ● | ● |
| CONVENIENT AND COMFORTABLE |
|
|
|
|

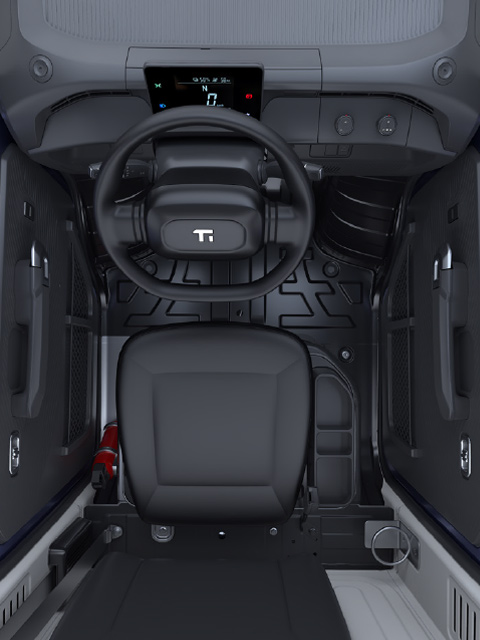

| Material of seats | weave● | weave● | weave● | weave● |
| 2 Flat seats | ● | ● | ● | ● |
| CONTROL DEVICE |
| EPS electric power steering | ● | ● | ● | ● |
| Vacuum-assisted braking | ● | ● | ● | ● |
| Slope standing function | ● | ● | ● | ● |
| Single warm air | ● | ● | ○ | ● |

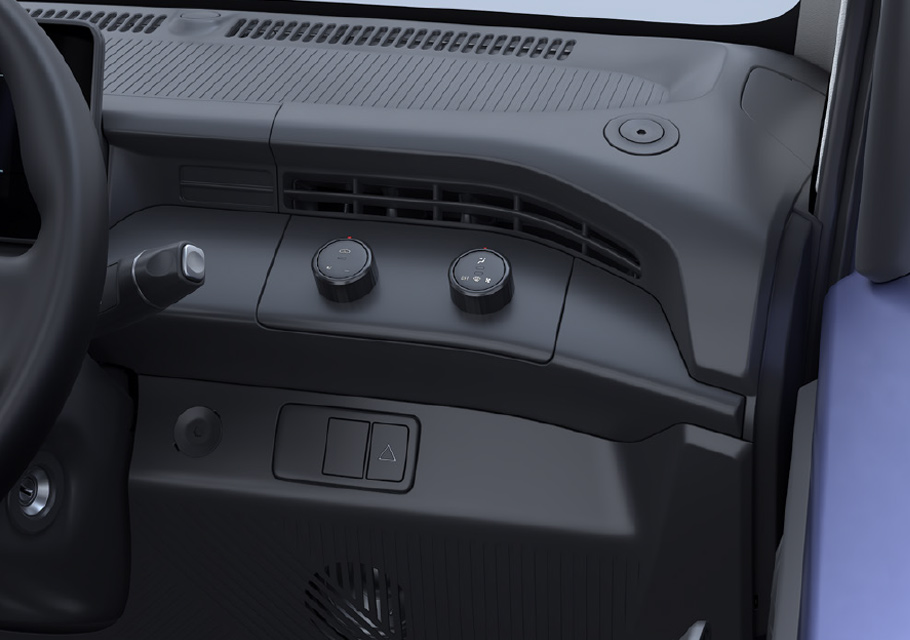

| Manual AC (heat, cool) | - | ○ | ● | - |
| MULTIMEDIA |
| Bluetooth function (mobile phone connection) | ● | ● | ● | ● |
| USB interface (1*18W) | ● | ● | ● | ● |
| Loudspeaker (1 No.) | ● | ● | ● | ● |
Monitoring platform T-BOX (remote positioning, fencing, anti-theft, interconnection) | ● | ● | ● | ● |
