Paidi V1-MAX- Cargo box

· 2.8m ³ cargo compartment
· 1300mm vehicle width
· 120km driving range
· Core Three Electric Brands of First tier Brands
· Vehicle grade quality

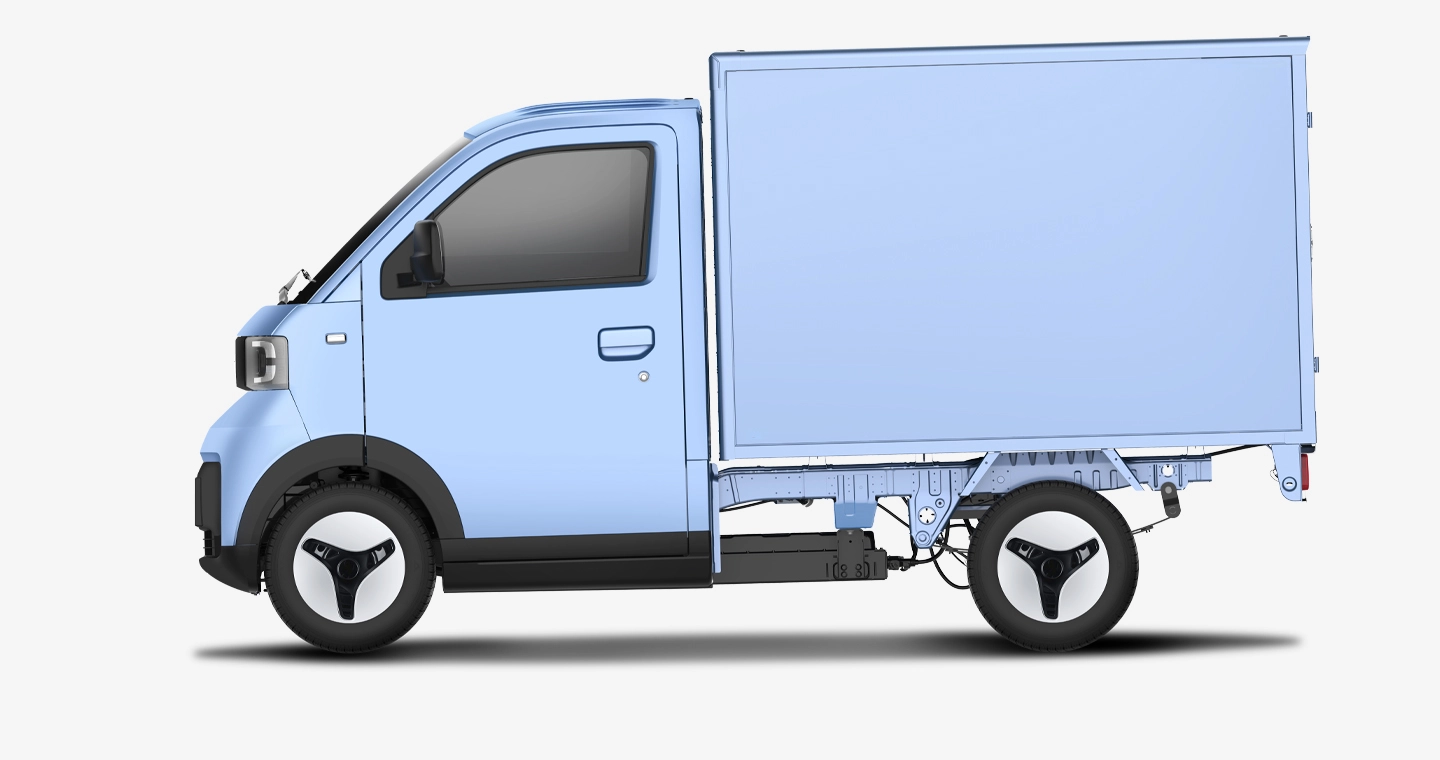

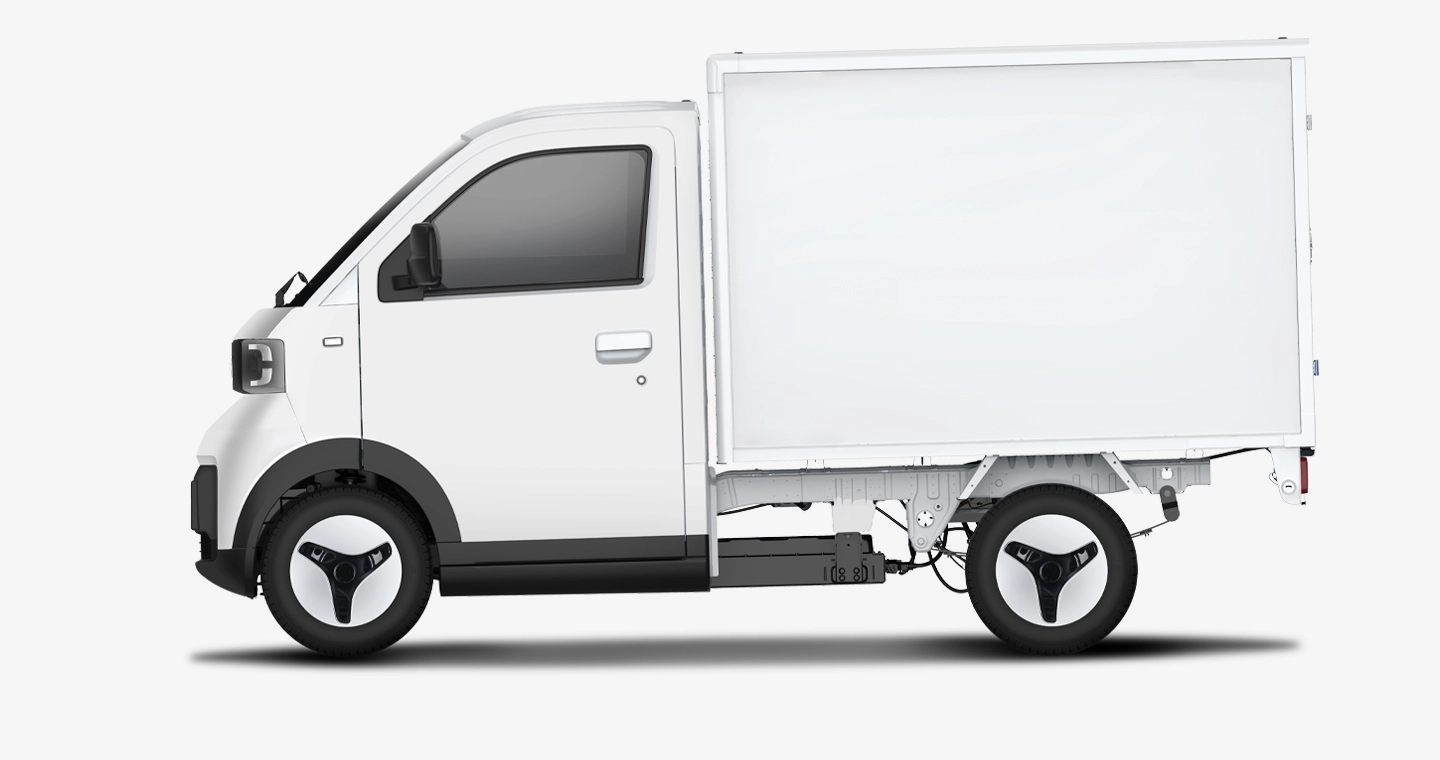

PAIDI V1-MAX SERIES

Cargo box

3535 mm

Length

1300 mm

Width

1910 mm

Height

2200 mm

Wheelbase

10 kWh

Battery Capacity

UNIQUELY START FUTURE

Automotive grade quality

Lifetime warranty for the frame, 3-year warranty for 80000 kilometers, 5-year warranty for 150000 kilometers for the battery

PAIDI V1-MAX Series Parameter List

Note: 1. (● Standard, ○ Optional, - Not available); 2. The endurance mileage is under the condition of a load of 200kg, a constant speed of 30km, and an external temperature of 20℃. Our company reserves the right to modify the provided parameters, and no further notice will be given in case of any changes.

MAIN PARAMETER	V1-MAX VERSION
LWH (mm)	3535×1300×1910
Wheelbase (mm)	2200
Internal size of container (mm)	1825×1240×1200
Tyre size	145/70 R12 (front) 145R12LT 6PR (rear)
Mn ground clearance(full load) (mm)	≥120
Min turning radius (m)	≤4.2
Max speed (km/h）	≥60
Curb weight (kg)	760
Rated load capacity（kg)	500
Full load capacity（kg)	980/1000
Range (km)	≥120
MOTOR/BATTERY PARAMETERS
Motor type	PMSM
Battery	Lithium iron phosphate
Battery capacity (kWh)	10
Battery heat management	Air cooling

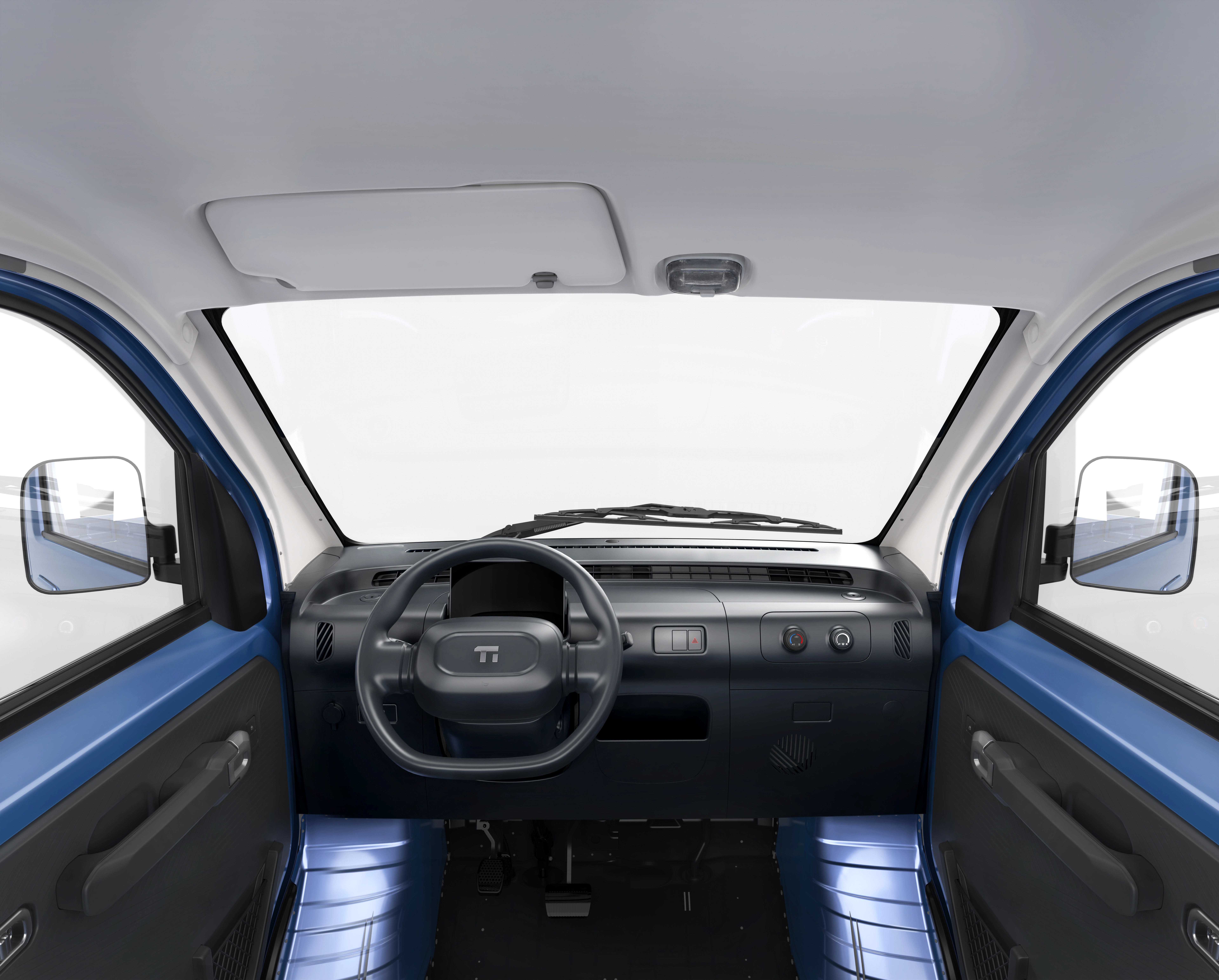

INTERIOR
Multi-function instrument (7-inch LCD screen)	○
Reversing camera image	○
Reverse radar	●

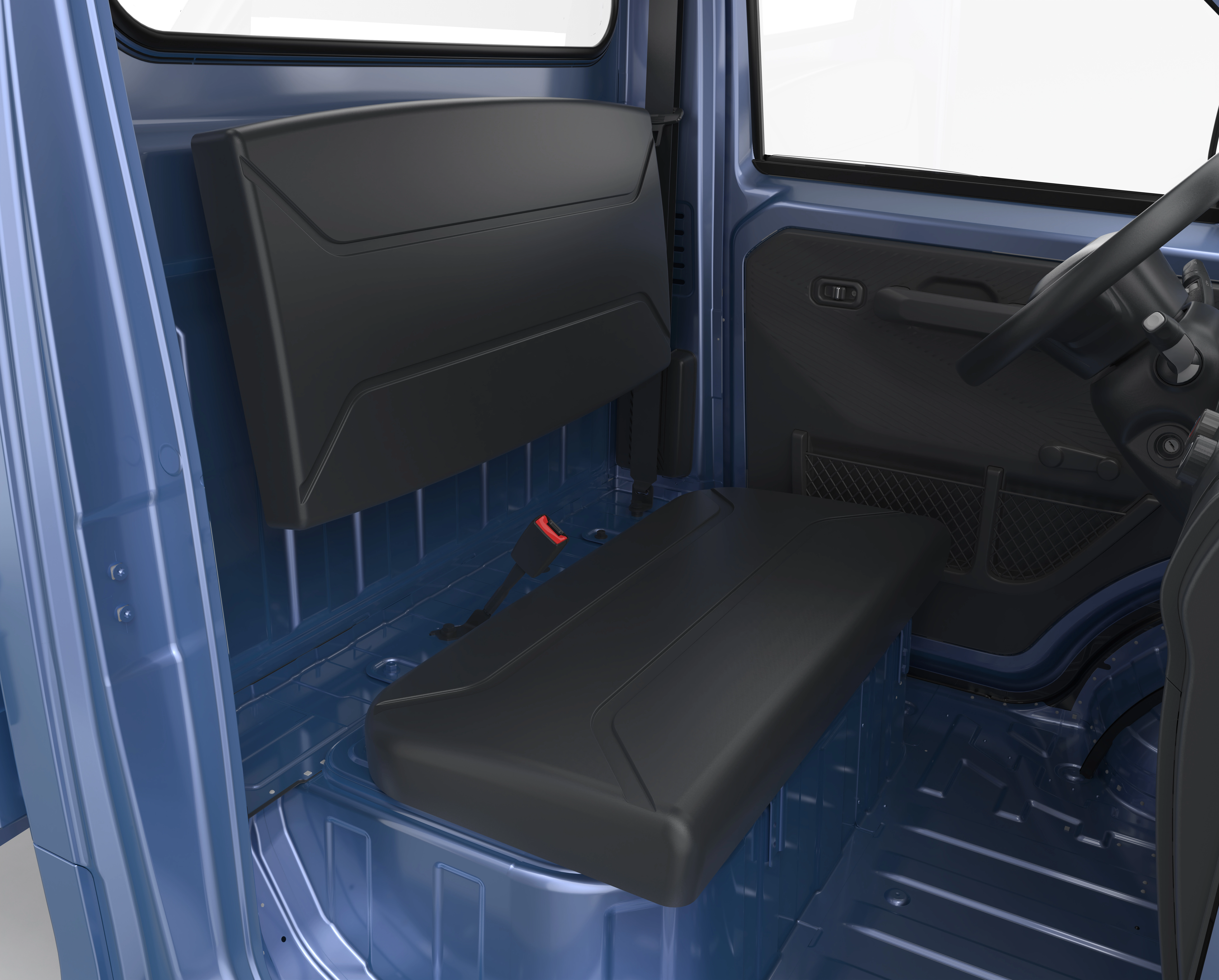

CONVENIENT AND COMFORTABLE
Material of seats	weave●
2 Flat seats	●
CONTROL DEVICE
EPS electric power steering	●
Vacuum-assisted braking	●
Slope standing function	●
Single warm air	○

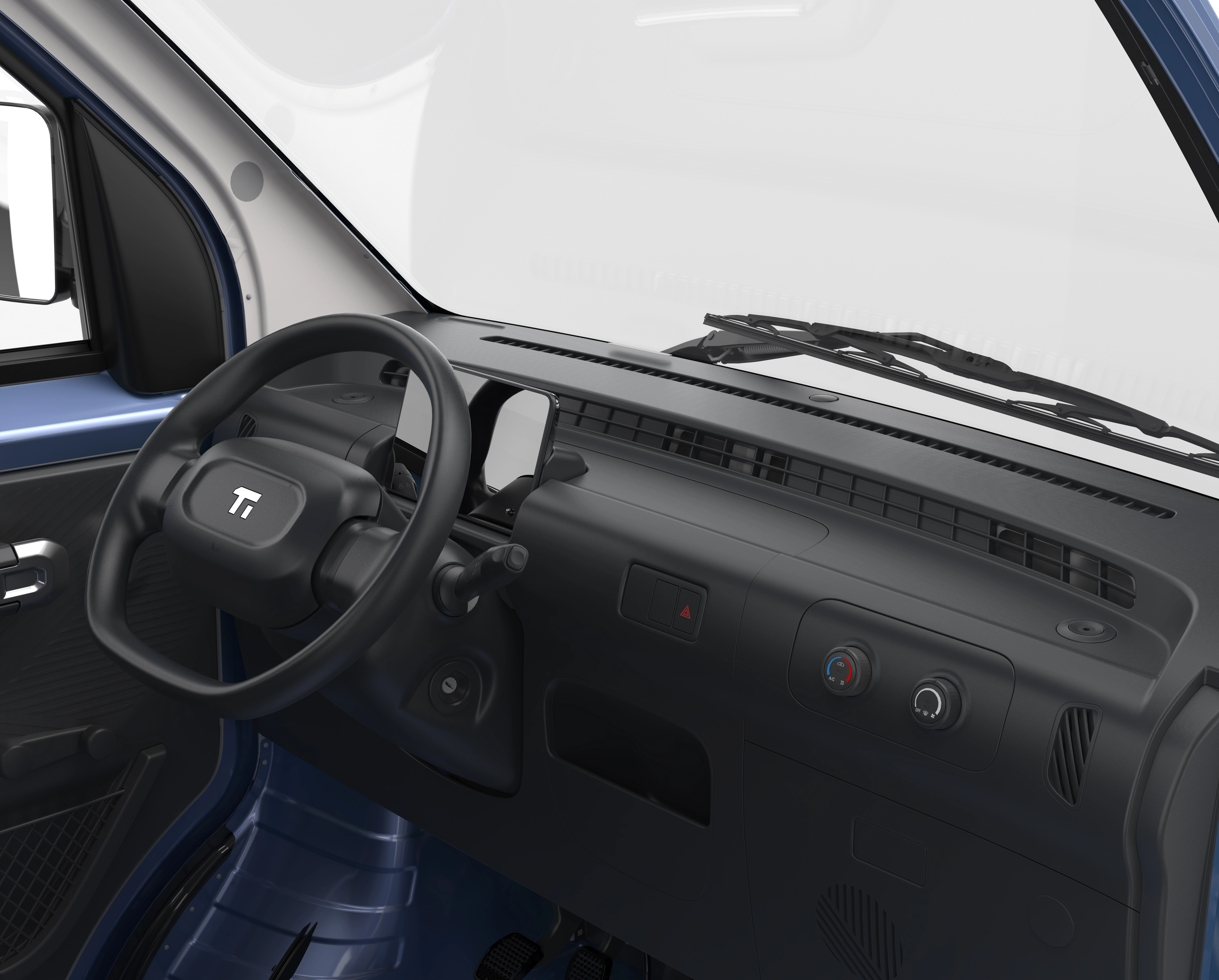

Manual AC (heat, cool)	○
MULTIMEDIA
Bluetooth function (mobile phone connection)	●
USB interface (1*18W)	●
Loudspeaker (1 No.)	●
Monitoring platform T-BOX (remote positioning, fencing, anti-theft, interconnection)	-
